Workflow WebhooksWorkflow Webhooks

Tag order when webhook received

When an external system calls your webhook with an order number and a tag, add that tag to the order. Lets a 3PL, ERP or no-code tool mark orders as shipped, invoiced or reviewed without Admin API access.

One trigger from Workflow Webhooks and Shopify's built-in actions, no other app needed.

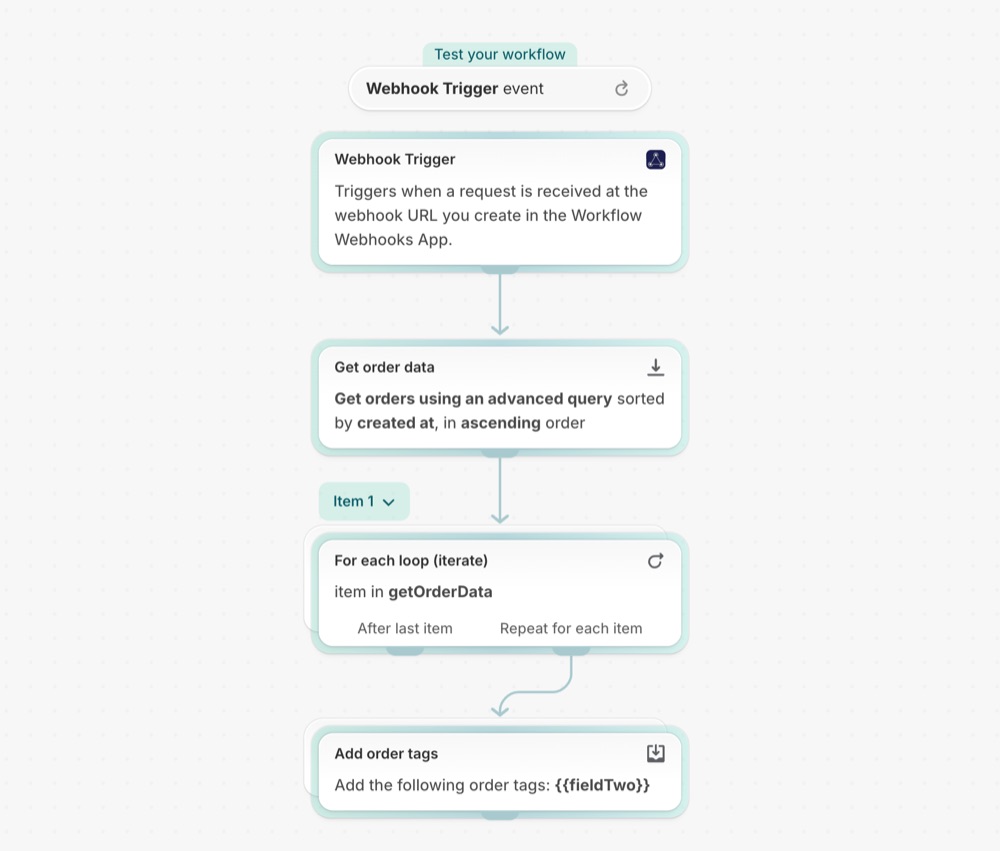

The workflow in Shopify Flow: Tag order when webhook received
The complete workflow as it looks in Shopify Flow.

What it needs

A webhook in Workflow Webhooks with this payload mapping. See Payload mapping and Flow variables.

Field What to map to it
fieldOne The order number, for example #1001
fieldTwo The tag to add, for example shipped-by-3pl

A call to the webhook then looks like this:

bash
curl -X POST https://<your webhook URL> \
  -H "Content-Type: application/json" \
  -d '{"orderNumber": "#1001", "tag": "shipped-by-3pl"}'

Get the workflow

  1. Download the .flow file attached at the bottom of this page.
  2. In your Shopify admin open Flow, click Import and choose the file.
  3. Check the steps, then click Turn on workflow.

The file is an export from Shopify Flow itself. Do not edit it by hand; change the workflow in Flow after importing it.

How it works

  1. Webhook Trigger starts the workflow each time your webhook URL is called and hands it the mapped fields.
  2. Get order data looks up the order with the query name:{{fieldOne}} and keeps at most one result.
  3. For each runs once for the order it found, and not at all when no order matches.
  4. Add order tags adds {{fieldTwo}} to that order.

Make it yours

  • Replace {{fieldTwo}} with a fixed tag such as shipped-by-3pl if the caller cannot send a tag.
  • Add Add order note or Update order metafield after the tag step to store more of what the caller sent.
